本公司銷售的德律設備均為二手設備，成色好，性能穩定。服務工程人員均在原廠有5年以上工作經驗，出貨前，我們會整體檢測，demo1-2個工作日再發貨。
出租設備，服務保養，升級保固，均為我司工程人員處理；
出售設備整機保固3個月，部分重要部件保固1年，若出保，我司配件備貨充足，可提供緊急維修。
買機/租機熱線：13776054406（手機/微信號）賈先生
特性：
? 100%無陰影四/雙數字邊緣投影儀
? 優化的走走停停設計，實現較高精度
? SmartWarp補償消除了局部PCB變形
? 100%焊膏缺陷覆蓋率，包括低橋
規格：
Optical System
Imaging Method
Stop-and-Go Imaging
Camera
4 Mpix or 12 Mpix (factory setting)
Imaging Resolution
6 μm, 10 μm , 15 μm (factory setting)
Lighting
RGB True Color LED
3D Technology
4-way Digital Fringe Pattern
Field of View
4 Mpix@ 10 μm: 20.3 x 20.3 mm
4 Mpix@ 15 μm: 30.5 x 30.5 mm
12 Mpix@ 6 μm: 24.4 x 18.4 mm*
12 Mpix@ 10 μm: 40.8 x 30.7 mm
12 Mpix@ 15 μm: 61.2 x 46.1 mm
* 6 μm is not available for TR7007QI DL
Inspection Performance
Imaging Speed
4 Mpix: 3 FOV/sec
12 Mpix: 2 FOV/sec
12 Mpix CoaXPress: 3 FOV/sec*
Note: Inspection speed depends on PCB and inspection conditions
* With optional CoaXPress upgrade
Height Resolution
@ 6 μm: 0.22 μm
@ 10/15 μm: 0.4 μm
Max. Solder Height
@ 6 μm: 210/420 μm
@ 10/15 μm: 420/840 μm

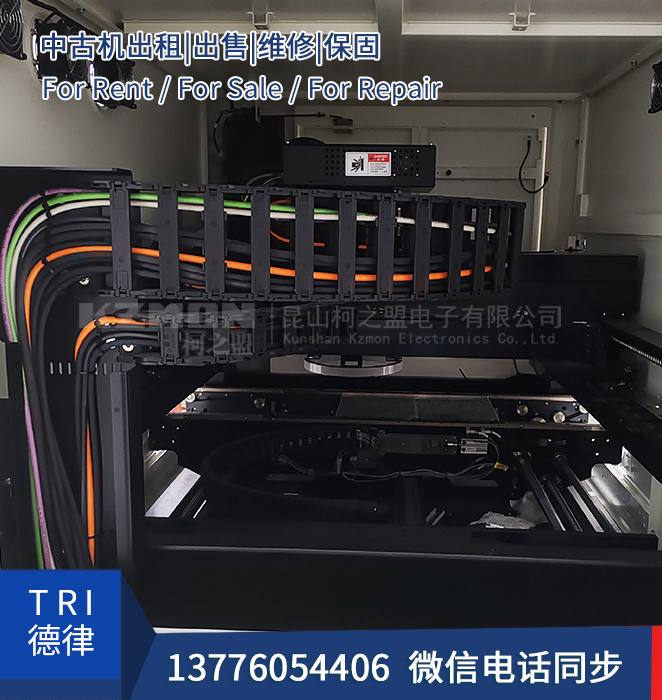

Motion Table & Control
X-Axis Control
Ballscrew + AC-servo controller
Y-Axis Control
Ballscrew + AC-servo controller
Z-Axis Control
Ballscrew + AC-servo controller
X-Y Axis Resolution
0.5 μm with linear scale
Z-Axis Resolution
0.5 μm with linear scale
Board Handling
Max PCB Size
TR70007QI: 510 x 460 mm*
TR7007QI DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane
* 6 μm is only available for TR7007QI, the Max. PCB size is 330 x 310 mm
PCB Thickness
0.6-5 mm
Max PCB Weight
3 kg
Top Clearance
25 mm
Bottom Clearance
40 mm
Edge Clearance
3 mm
Conveyor Height
880 – 920 mm
* SMEMA Compatible
Inspection Functions
Defects
Insufficient Paste
Excessive Paste
Shape Deformity
Missing Paste & Bridging
Measurement
Height
Area
Volume
Offset
Dimensions
WxDxH
TR7007QI: 1000 x 1500 x 1650 mm
TR7007QI DL: 1000 x 1700 x 1650 mm
Note: not including signal tower, signal tower height 520 mm
Weight
TR7007QI: 675 kg
TR7007QI DL: 685 kg
